608 Auto Table Grinder

Home ] Up ]


608 Plain Auto Table




Model 1018 Uni. on 90" cabinet


Flow Control Grinder

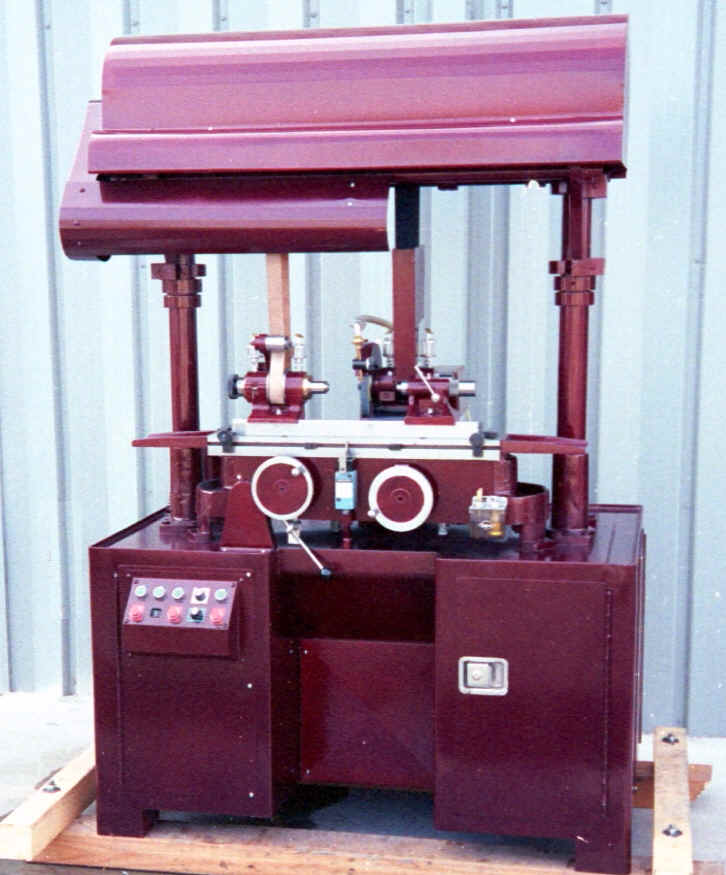

608 Auto-Table Cylindrical Grinder

Shipping weight, crated (approx.) 3050
Overall length, inches (approx.) 48"
Overall width, inches (approx.) 30"
Overall height, inches (approx.) 92"
Distance between centers, inches 10"
Swing over table, inches 6"
Swing over standard water guard, inches 4-1/2"
Carbide centers, number 4
Collets, standard 1/2" 3C
Hole through spindle (inches) 9/16"
Diameter of Head stock spindle (inches) 1-3/4"
Diameter of Tail stock spindle (inches) 1"
Length of table  (inches) 28-1/2"
Grinding wheel S.P.M. 6000
Standard Grinding wheel diameter (inches) 7"
Grinding wheel width, inches 1/8" to 1/2"
Hole in wheel, inches 1-1/4"
Wheel head motor,      3 Ph AC hp 2
DC Wheel head motor avail. OPT.
DC Head stock drive hp 3/4
Motor speed on Head stock (RPM) 0-1700
Coolant system (exceeds gal. listed) 25
Filtering system OPT.
Light control (volts AC) 110
