608 Plain Auto Table

Model 1018 Uni. on 90" cabinet

Flow Control Grinder

SURFACE SPM	4000	4500	5000	5500	6000	6500
GRINDING WHEEL DIAMETER	SPINDLE RPM	SPINDLE RPM	SPINDLE RPM	SPINDLE RPM	SPINDLE RPM	SPINDLE RPM	SPINDLE RPM
7"	2183	2455	2728	3001	3274	3547
8"	1910	2148	2387	2626	2865	3103
10"	1528	1719	1910	2101	2292	2483
12"	1273	1432	1591	1751	1910	2069
14"	1091	1229	1364	1500	1637	1773

wheelhead spindle pulley = Driven pulley

motor pulley = driving pulley

wheelhead spindle RPM = Driven pulley rpm

motor rpm = driving RPM

dia. = diameter

SPM = SURFACE SPEED PER MINUTE

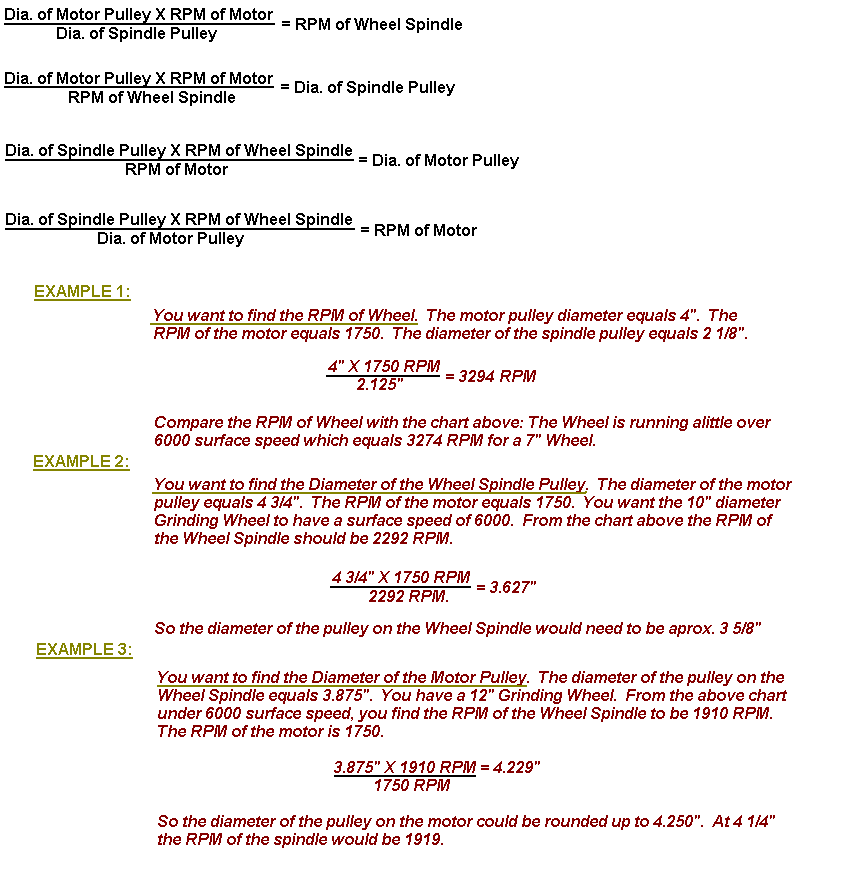

equations:
